科微户用储能柜

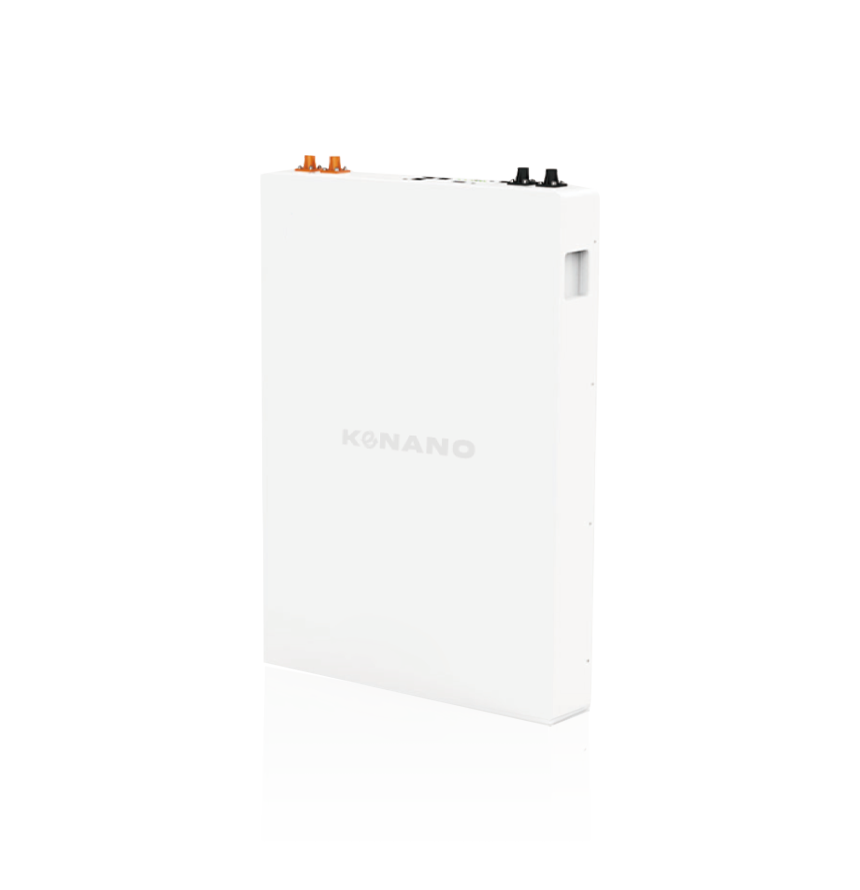

Noldor HB-L
可应用于家庭备电、离网用电、光储充一体
Noldor HB-L易于安装，连接简单，维护要求也低，有安全的LFP电池，容量可扩展至9.6kWh。
Noldor HB-L 外观选择
DATASHEET
|
Models TECHNICAL DATA |
HB-L2k4 |
|
Total energy[kWh] |
2.4 |
|
Usable energy[Kwh]*① |
2 |
|
Battery module |
2.4Kwh（48V50Ah29kg） |
|
Number of modules |
1 |
|
Battery type |
LFP（LiFeP04） |
|
Nominal voltage[V] |
48 |
|
Operating voltage range[V] |
45~52.5 |
|
Constant dis-/charge current[A]*② |
50/25 |
|
Communication |
CAN/RS485 |
|
Storage temperature |
Within 1 month：-20℃~60℃；1-3months：0℃~35℃；3-12months：20℃~25℃ |
|
Operating temperature range |
Charge:0℃~+45℃；Discharge：--20℃~+50℃ |
|
Relative humidity[%] |
0~100 |
|
Ingress protection rating |
IP20 |
|
Max.scalable NO.in parallel |
4 |
|
Weight[kg] |
29 |
|
Dimensions(W*H*D)[mm] |
450*95*640 |
|
Mounting method |
Wall mounted |
|
STANDARD |
|
|
Satety&EMC |
IEC62619, CE,RCM |
|
Transport |
UN38.3 |
① DOD varies with temperature and other related conditon.
② Nominal dis-/charge current and power derating will occur related to temperature and SOC.
* All specifications are subject to change without notice.
* All pictures shown are for reference only, actual appearance mayvary.
